LI5282I 280J Instrumented Falling Weight Impact Testing Machine

The LI5282I 280J Instrumented Drop Weight Impact Testing Machine is designed for composite and non-metallic material impact testing, offering up to 280 J impact energy, instrumented data acquisition, and reliable single-impact analysis.

Overview

The LI5282I 280J Instrumented Drop Weight Impact Testing Machine is used to evaluate the impact damage resistance of non-metallic materials, especially standard and non-standard composite plate specimens. The system records and analyzes force, displacement, time, velocity, and energy data during the impact process, helping users understand material behavior under drop-weight impact loading.

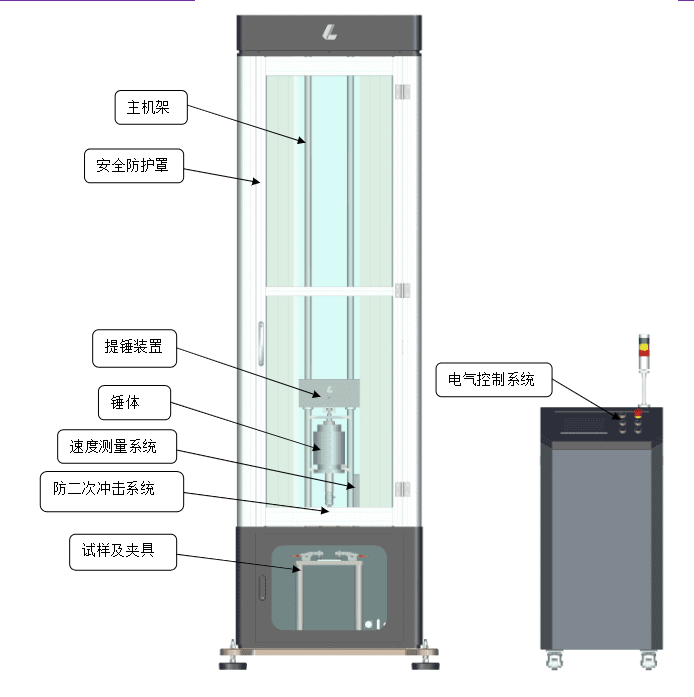

Designed to meet the requirements of ASTM, EN, ISO and ASTM D7136/D7136M-15, the tester integrates a rigid frame, instrumented striker, specimen fixture, speed measurement, high-speed data acquisition, PLC control, PC software, and safety protection. It is suitable for laboratories requiring higher-energy instrumented impact testing with efficient control and clear result curves.

Features

280 J Impact Energy Range
• Supports 4 J–280 J impact testing for composite panels and non-metallic specimens.
Instrumented Impact Measurement
• Integrated load sensor and high-speed acquisition system capture the impact process and generate key test curves.
Secondary Impact Prevention
• The catching mechanism helps stop striker rebound and supports reliable single-impact test results.
Standard Fixture and Striker Design
•  ASTM D7136-compliant fixture and φ16 mm hemispherical striker support composite plate impact testing.
Safe and Flexible Operation
• PLC touch screen, PC control, transparent protective enclosure, and safety interlock improve daily operation and protection.

Application

Composite Materials:
Drop-weight impact resistance testing of FRP composite panels, laminates, and plate specimens.
Non-Metallic Materials:
Impact performance comparison of plastics, polymer plates, and composite structures.
R&D and Quality Control:
Material selection, impact behavior research, batch comparison, and laboratory report generation.
Standard and Custom Testing:
Testing of standard or non-standard specimens for research, production, and verification needs.

Technical Specifications:

Model LI5282I
1 Applicable Standards ASTM, EN, ISO; ASTM D7136/D7136M-15
2 Impact Energy Range 4 J–280 J
3 Impact Height Range 200–1500 mm
4 Maximum Impact Velocity 5.4 m/s
5 Adjustable Striker Mass 2–20 kg, in 0.5 kg increments
6 Striker Head φ16 ± 0.1 mm; SR8 ± 0.1 mm; HRC 60–62
7 Fixture Support Opening 75 ± 1 mm × 125 ± 1 mm
8 Typical Specimen Size 100 × 150 × (5 ± 1) mm or customized
9 Load Sensor Capacity ≥50 kN
10 Sampling Frequency ≥200 kHz per channel
11 A/D Resolution ≥16-bit
12 Speed Measurement Range ≥6 m/s
13 Machine Dimensions Approx. 550 × 800 × 2850 mm
14 Machine Weight Approx. 600 kg
15 Power Supply Single-phase 220 V ±10%, 50 Hz, 1.5 kW
16 Software TestMaster Control & Analysis Software
