DynamicExpert
The test software encompasses fatigue crack growth, high-cycle fatigue, low-cycle fatigue, fracture toughness, tensile, compressive and many other tests.
Overview:
“DyammicExpert” is a proprietary, comprehensive software platform designed for a wide range of dynamic mechanical tests, including high-cycle fatigue (HCF), low-cycle fatigue (LCF), fracture toughness (K₁C, J₁C, CTOD), crack growth, thermal-mechanical fatigue, and more.

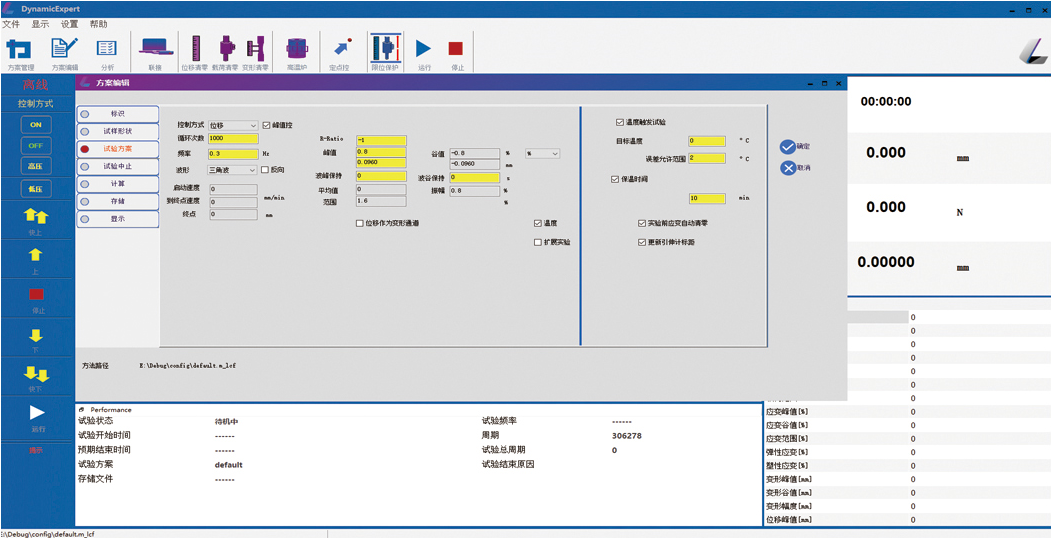

The software offers an intuitive test-setup interface, flexible graphical displays, configurable real-time calculations, robust data storage, and a wide range of waveform execution capabilities.
Setting up and running tests are made easy with user-friendly utilities like:
Adaptive auto PID tuning
Specimen protection function
Auto detecting improper parameter value input during test setup
Real-time trend tracking of parameter values and auto test shutdown when limits are exceeded and instantly recording moment status data
Real-time adjustment of test parameters such as switching control modes, modifying frequency, or changing strain amplitude without stopping the test
Pause/resume functionality to allow specimen inspection without affecting test results
The software includes powerful post-test calculation and statistical analysis tools that comply with relevant testing standards. It can interpret data and generate results such as S-N, ε-N curve fitting for HCF and LCF, test validation for K1C, J1C, CTOD, △K-da/dN curve fitting for crack growth.
Its reporting module offers flexible layout configuration and supports exporting results to Excel or Word, complete with embedded charts and graphics.
Feature
Control
Supports load,displacement,and strain control,as well as cyclic testing under each control mode.
Adjustment
Test parameters can be adjusted in real time during testing.
Phase Control
Supports start-phase control for test waveforms
Specimens
Supports plate,rod,tubular,three-point-bend,and four-point-bend specimens.
Data Logging
Supports linear, logarithmic,combined,and user-defined cycle data logging,as well as peak and trend data storage
Data Capture
Stores all cyclic-test data.
Open Format
Uses the open CSV file format,compatible with Microsoft Excel.
Data Export
On-screen curve data can be exported to CSV files
Reporting
Optional Microsoft Excel and Word test-report formats are available,with embedded Office charts for convenient review of curve data.
Applicable Test Standards:
For metals: ASTM E466, ISO 1099, ISO 12106, ASTM E606, ASTM E647, ISO 12108, ASTM E1820, ISO 12135, ASTM E1290, ISO 15653, ASTM E561, etc.
For composite: ISO 13003, ASTM D6873, ASTM D3479, ASTM D3039, ASTM D3479

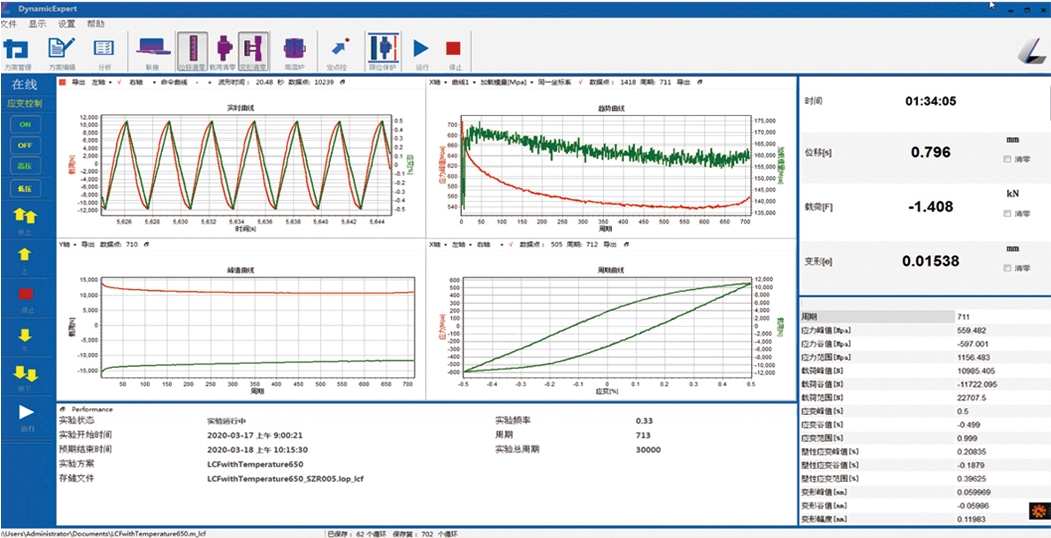

Real-Time Data Processing

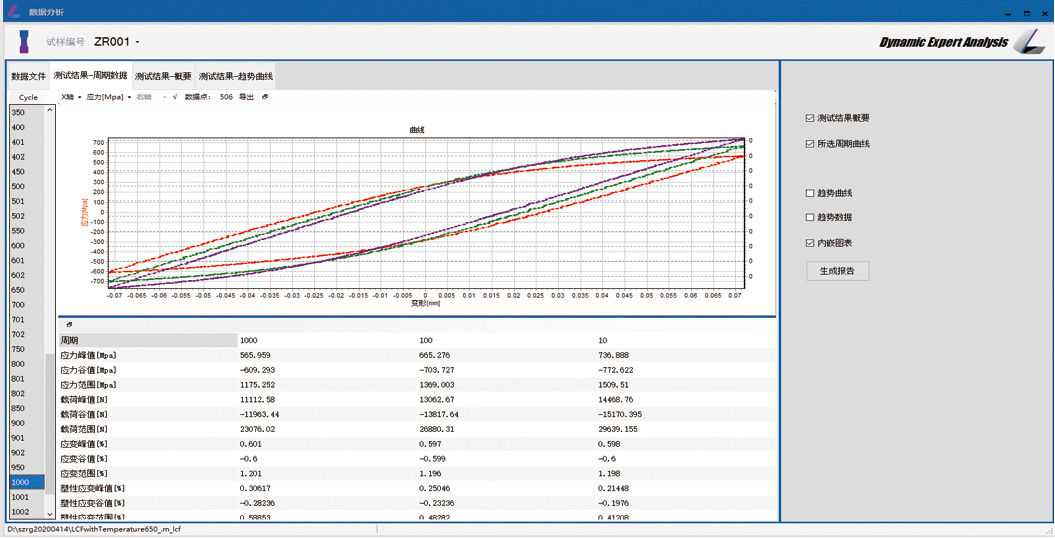

Data Analysis
Why Choose Us?
-
• We provide 7×24 technical consultation, operator training, and timely software updates.
-
• We offer remote monitoring of equipment status, enabling rapid diagnosis and resolution when abnormalities occur.
-
• Keeping up with the latest development of widely adopted international standards from ASTM, ISO, etc. to ensureyour test results relevant and credible
-
• Maximizing your lab investment returns with tailored solutions to your unique needs from cost effective hardware tosoftware customization
-
• We treat everyone, be it clients, colleagues or partners, with honesty and sincerity.
-
• Staying at the forefront of testing technologies that continuously improve test accuracy, repeatability, and eficiency
