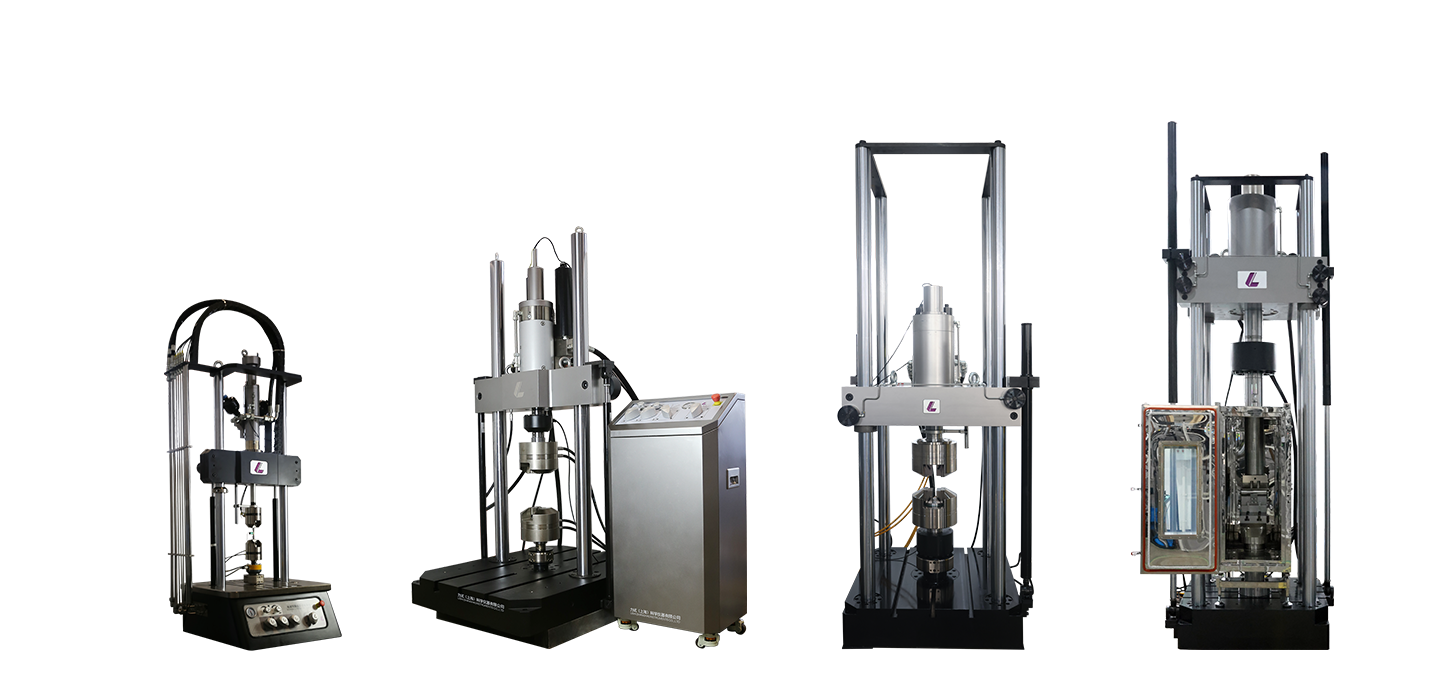

Built upon decades of experiences in serving dynamic testing community, LF series servohydraulic test systems are engineered to provide comprehensive testing capabilities, outstanding performance, and long service reliability. There are three standard load frame structures offered: tabletop, floor standing (actuator base mounted), floor standing (actuator crosshead mounted) with force capacities range from 10kN to 250kN. In addition, 500kN and 1000kN systems are available as custom engineered solutions.

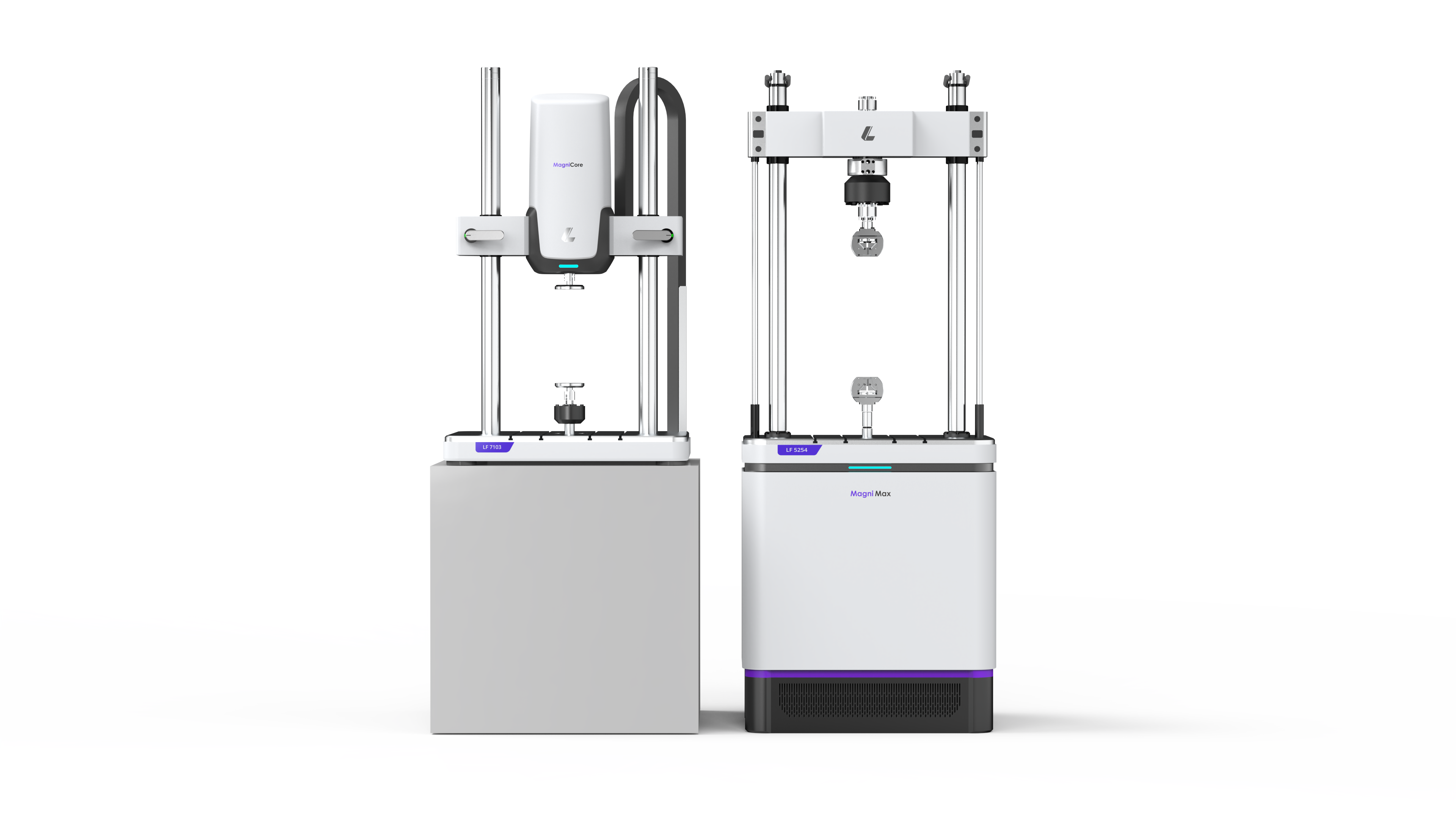

EF7000 Series Electronic Fatigue Test System

Product Overview:

With load capacities of up to 25 kN, the tabletop EF electronic fatigue test systems feature a compact design, low-noise operation, and high-frequency response, making them ideal for low-force cyclic fatigue tests on small specimens, biomedical components, and advanced materials.

Description:
Maximum Load Up to 20kN
Load Accuracy 0.5% FS
Data Acquisition Frequency Up to 200Hz
Drive System Adopting electromagnetic direct drive / linear motor drive solution, it features fast response speed and high control accuracy, and eliminates oil leakage, noise and maintenance issues existing in traditional hydraulic systems.
Fixtures & Accessories (Optional) Various special fixtures such as tension, compression, bending modules, environmental chambers, high-temperature furnaces, extensometers and non-contact extensometers can be configured according to test requirements.
Core Values It delivers reliable testing capabilities for users pursuing high-frequency dynamic loading, precise measurement & control, low-noise operation, energy-saving eco-friendly environment and flexible fixture expansion. It is especially ideal to replace part of low-load hydraulic fatigue testing applications.
Application Scenarios Applicable to fatigue life, dynamic performance and durability tests of biomedical devices, electronic and semiconductor components, food packaging materials, textile materials, composite materials, small parts, elastic elements and precision structural parts.

LEARN MORE

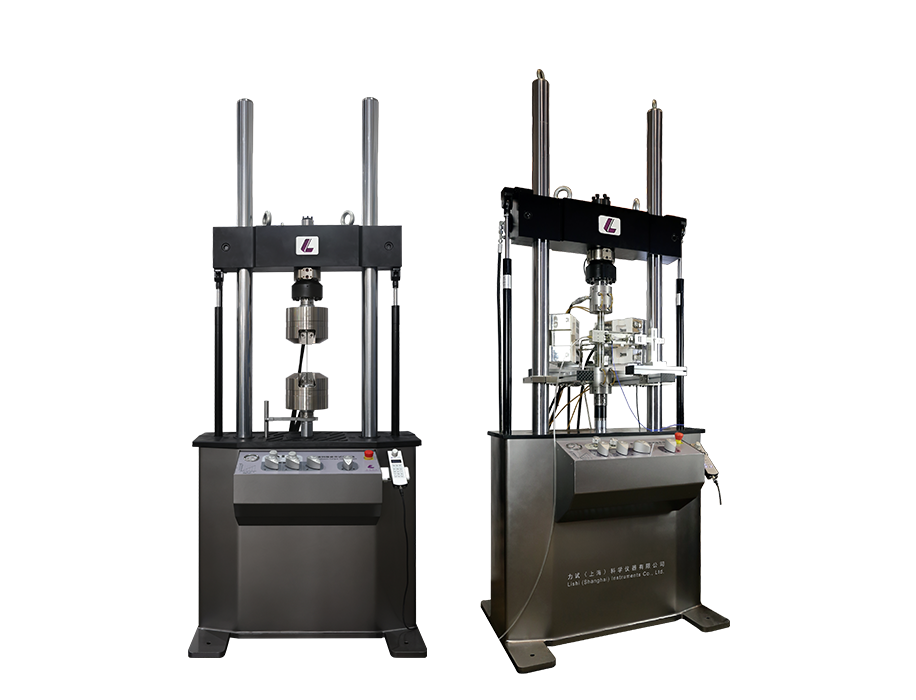

LF5000 Series Floor standing Servohydraulic Test Systems

Product Overview:

he LF5000 bottom-mounted actuator series is designed for medium-load dynamic and fatigue testing applications, with a focus on system stability, efficient use of test space and ease of operation. The system adopts a high-stiffness floor-standing load frame, with the servohydraulic actuator positioned at the base of the machine to ensure stable force transmission, convenient specimen installation and reliable long-term operation.Available in load capacities from 25 kN to 250 kN, this series is suitable for static, dynamic, fatigue, durability and fracture mechanics testing of metals, composites, polymers, components and small structural parts. With its compact structure and flexible fixture compatibility, it is well suited for routine dynamic mechanical testing in universities, research institutes, quality control departments and industrial testing sites.

Description:
Maximum Load Up to 250kN
Load Accuracy 0.5% FS
Data Acquisition Frequency 10 kHz
Fixtures & Accessories (Optional) Hydraulic wedge grips,CT, SEB/SENB, C(T), SE(T), SEN(T), DCB and other fracture mechanics fixtures, high-temperature/dynamic extensometers, COD gauges, environmental chambers, high-temperature furnaces,and customized test fixtures.
Core Values The bottom-mounted actuator layout provides a stable load frame structure, flexible test space arrangement, and convenient specimen clamping and daily operation. The system is suitable for medium-load fatigue testing, high-precision servo control, and long-term stable operation.
Application Scenarios Suitable for fatigue and durability testing, fracture mechanics research, material performance evaluation, automotive component testing, aerospace part validation, civil engineering material studies, university laboratories, quality control departments, and industrial testing sites.

LEARN MORE

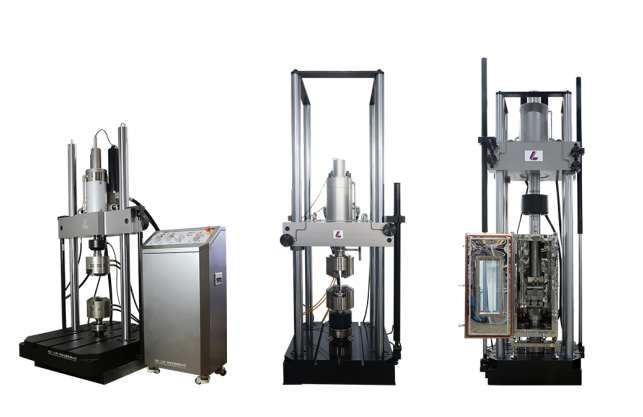

LF7000 Series Floor Standing Servohydraulic Test Systems

Product Overview:

Backed by decades of dynamic testing engineering expertise, our servo-hydraulic fatigue test systems feature full-range testing functions, superior dynamic performance and stable long-term operation. They support fatigue, durability, fracture mechanics, static and dynamic tests on materials, components and structures.Available from table-top to floor-standing Servo-hydraulic Load Frame (Crosshead Mounted Actuator) configurations, with a force range from 10 kN to 3000 kN, they are ideally suited for laboratories, QC departments, universities, research institutes and industrial sites.

Description:
Maximum Load Up to 3000kN
Load Accuracy 0.5% FS
Data Acquisition Frequency 10 kHz
Fixtures & Accessories (Optional) Hydraulic wedge grips,CT, SEB/SENB, C(T), SE(T), SEN(T), DCB and other fracture mechanics fixtures, high-temperature/dynamic extensometers, COD gauges, environmental chambers, high-temperature furnaces,and customized test fixtures.
Core Values Exclusively engineered for users pursuing high dynamic performance, ultra-high-frequency data acquisition, and fatigue/endurance testing under complex cyclic loading conditions.
Application Scenarios Widely used in fatigue and durability testing, fracture mechanics studies, aerospace and defense R&D, automotive powertrain and structural component testing, civil engineering material research, high-strength metal and composite testing, and industrial labs requiring reliable long-term dynamic loading performance.

LEARN MORE
