ASTM D7332

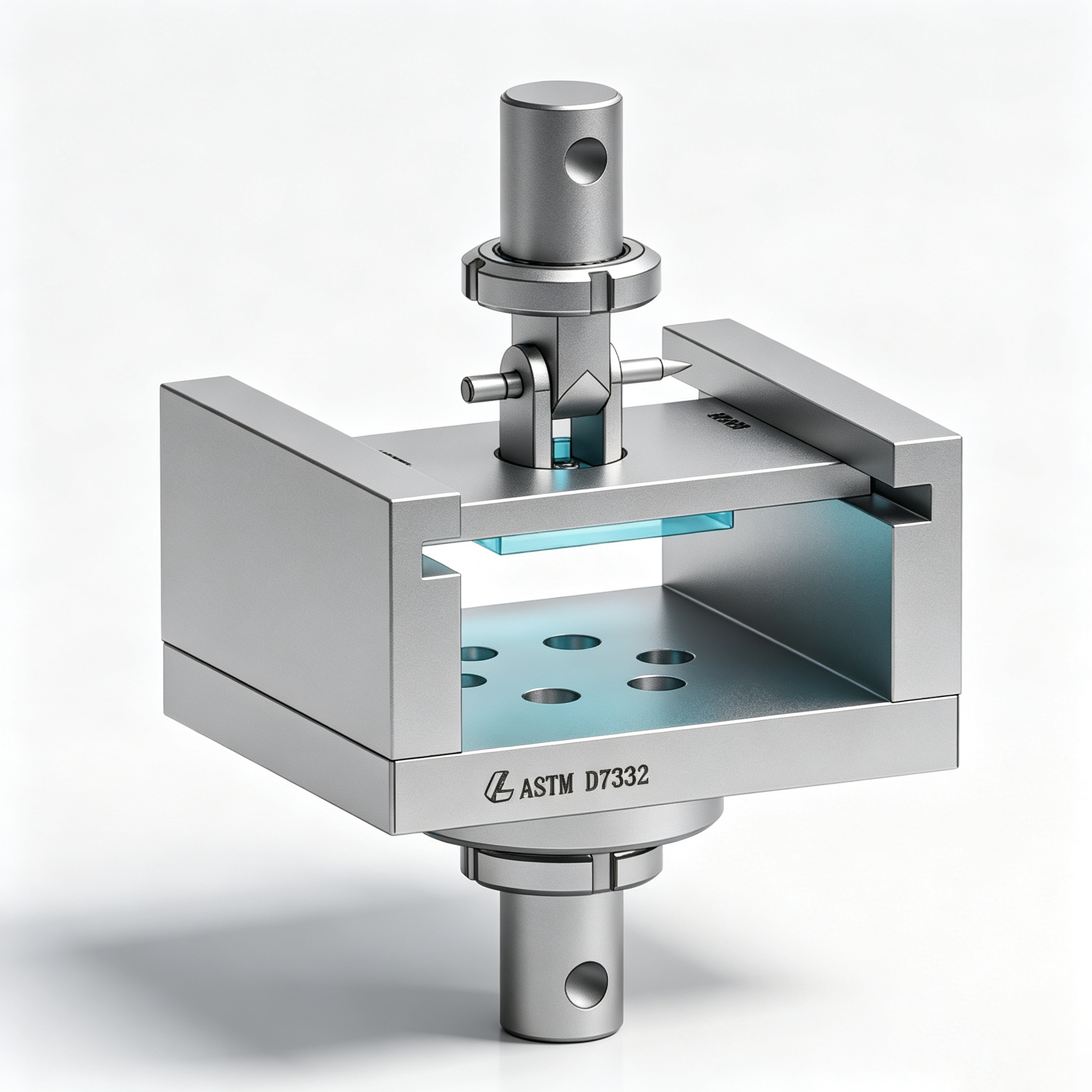

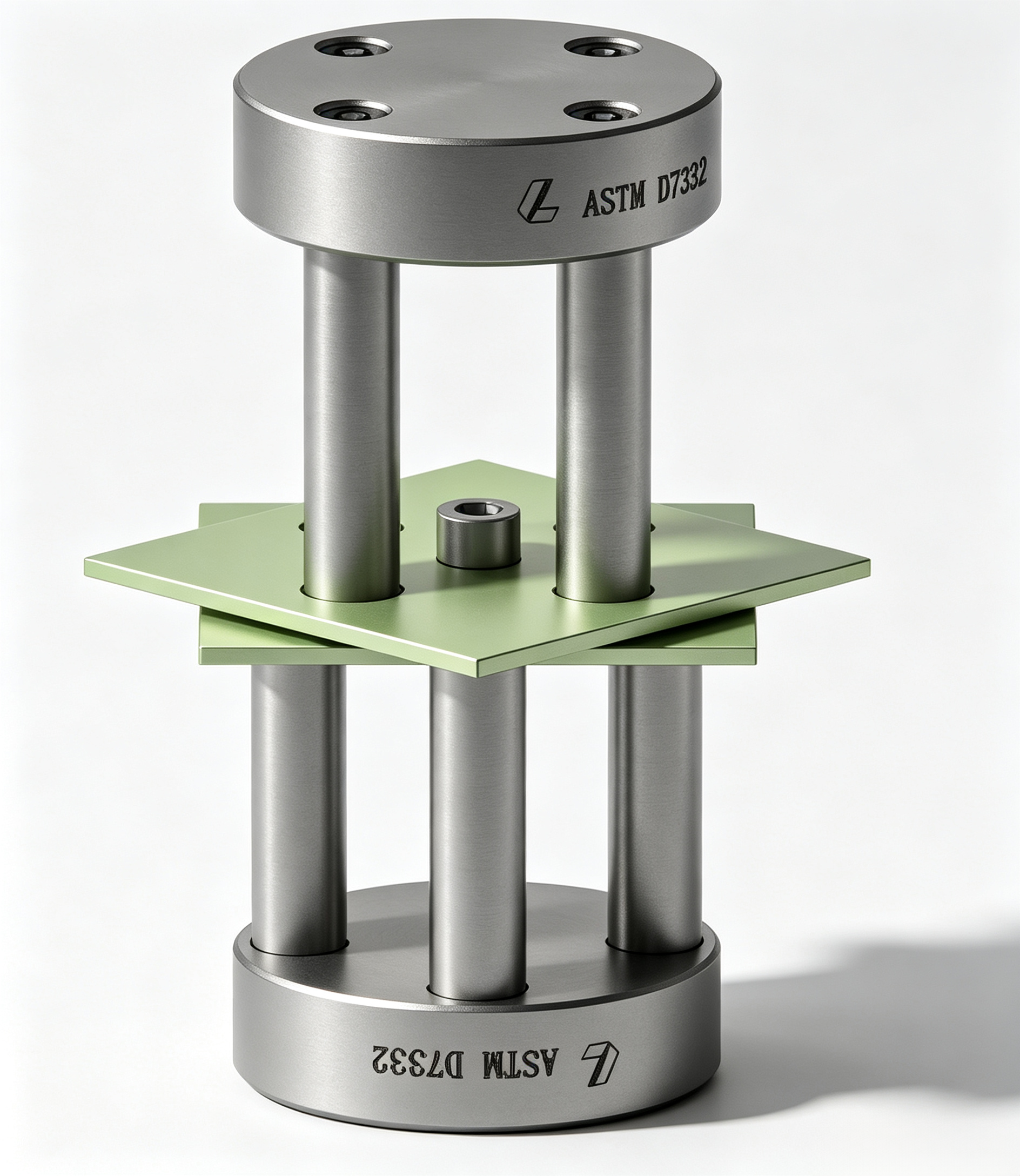

Engineered in strict accordance with ASTM D7332, our fastener pull-through resistance fixtures are designed to evaluate the pull-through strength of mechanical fasteners in polymer matrix composite materials. Available in both compression (four-pillar design for maximum stability) and tension configurations (with customizable cover plates for various specimen sizes), these fixtures deliver precise and reliable data for structural design. Capable of handling loads up to 20 kN and operating in extreme temperatures (-70 to 300 °C), they are essential tools for assessing joint integrity and damage tolerance in advanced composite applications.
Overview
Designed in strict compliance with the ASTM D7332 standard, this fixture is engineered to evaluate the fastener pull-through resistance of polymer matrix composite materials. It provides highly reliable data support for structural design and joint integrity analysis. By applying controlled tensile or compressive loads, the fixture accurately measures the force required to pull a fastener through a composite plate, which is crucial for assessing the damage tolerance and load-bearing capacity of advanced composite structures used in critical engineering applications.
Design Features and Benefits
Applications
Technical Specifications:
| Parameter | ACAD7332A0 | ACAD7332B0 | |
| 1 | Test Style | Fastener Pull-Through Fixture (Compression) | Fastener Pull-Through Fixture (Tension) |
| 2 | Part No. | 1JAASD733201 | 1JAASD733202 |
| 3 | Max Load Capacity | 20 kN | 20 kN |
| 4 | Specimen Size | 108 × 108 × 3.3 mm | 60×68, 72×72, 84×84, 96×96, 108×108 mm |
| 5 | Specimen Bolt Hole Dia. | 10 mm | M4, M6, M8, M10 |
| 6 | Dimensions (H × W × D) | 200 × Φ94 mm | 254 × 166 × 146 mm |
| 7 | Weight | 4.3 kg | 9.3 kg |
| 8 | Operating Temperature | -70 to 300 °C | -70 to 300 °C |
| 9 | Built Material | Steel | Steel |
| 10 | How to Use / Interface | Compression Platens (Φ150mm) | Φ31.75 mm |
Related Products:
| Part No. | Model Code | Description |
| 1JYY1105V301 | YSS105S.00 | Compression Platen Set (150mm/6 inch diameter Recommended) Adjustable Spherical Seating on the Upper Platen |
