EF5204 Electronic fatigue testing machine

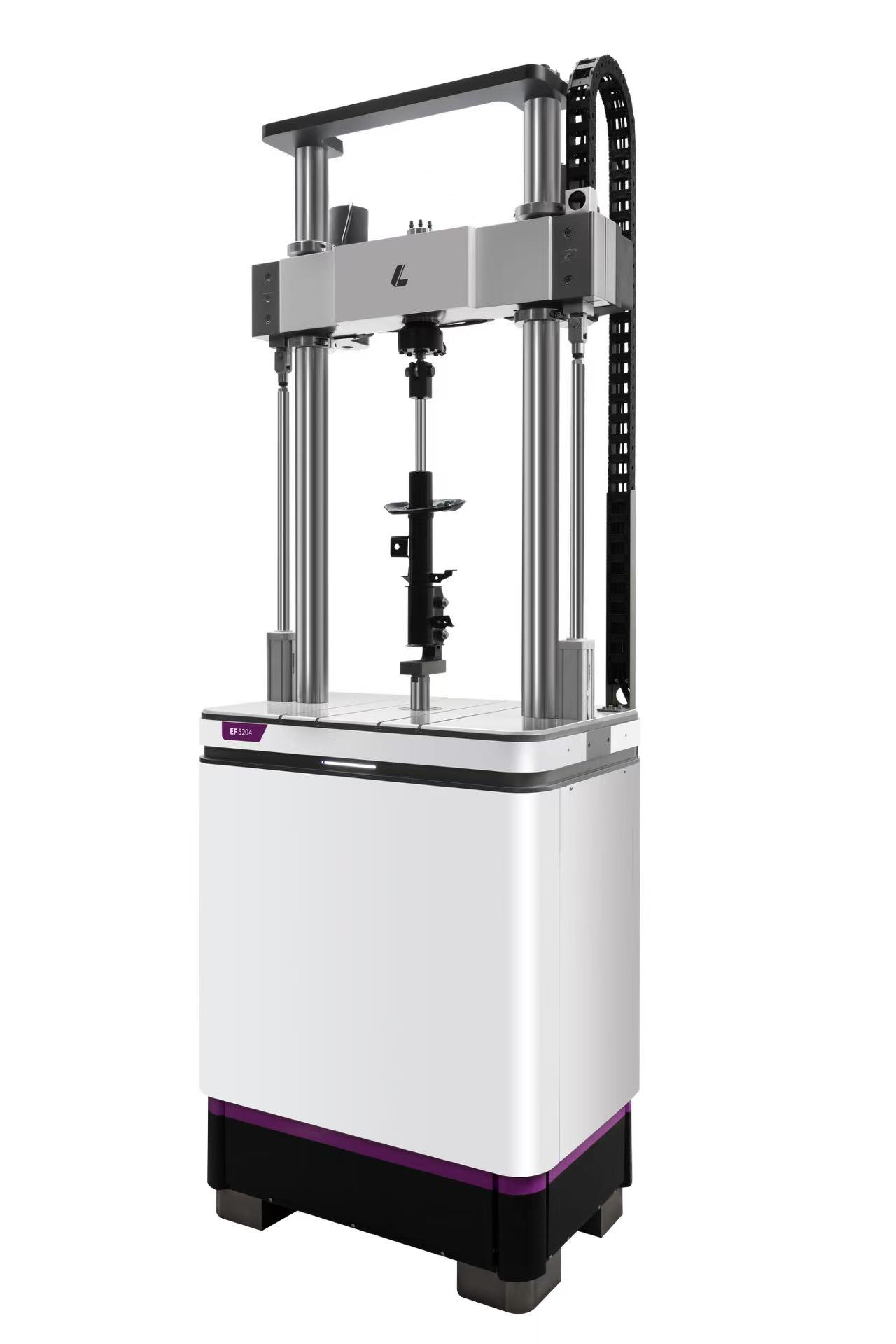

20kN Electro-Dynamic Test Machine
The MagniMlax Electro-Dynamic Test Machine, the latest addition to the Magni series of LSl, is a high-precision mechanical testing platform based on linear motor drive technology, designed for high-frequency dynamic testing applications in aerospace, automotive, biomedical, and electronics industries.
Operating from 0-250 Hz, it supports static, fatigue, fracture, and crack propagation testing, with optional torsion for combined loading. It features Class 0.5 force accuracy, 0.1 μm displacement resolution, multi-waveform and sweep functions, and is compatible with environmental chambers.
Designed for cleanrooms, it is compact, oil-free, quiet (<50 dB), and energy-efficient. It also serves as a shock absorber dynamometer. Typical uses include component fatigue, material durability, biomechanical life, and semiconductor reliability testing—enhancing R&D and quality control.
| Powerful | Industry leading 20kN dynamic loading capacity |
| Test frequency supports up to 200Hz (with 0.1mm stroke) | |
| Versatile | Equipped with an extra-large 900mm test space |
| Truly universal system for both dynamic and static testing | |
| Performance | Exceptional mechanical responsiveness |
| Both force and displacement accuracy reach 0.5 Class | |
| Easy to Operate | Intuitive operation logic |
| Powered crosshead control and auto-lock mechanism | |
| Compact overall design (with a footprint of only 0.6m² or less) | |
| Eco-Friendly | Quiet |
| Clean | |
| Low Maintenance |
| Maximun Dynamic Load | 20000 N |
| Maximun Static Load | 25000 N |
| Force and Displacement Accuracy | 0.5 Class |
| Stroke | 80 mm |
| Maximum Test Frequency | Up to 200Hz |

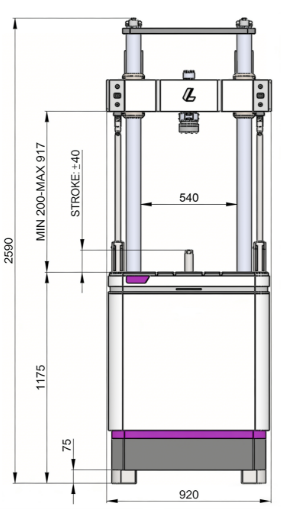

| Bench Height | 1175 mm |
| Column Separation | 540 mm |
| Column Diameter | 80 mm |
| Dimension(mm) | 920(L)X600(D)X2950(H) |
| Weight | 1200 kg |
| Configuration | Twin-column Floor standing |
| Electrical Supply | 380V/50Hz 40kW |
| Operating Temperature | +5℃-+40℃ |
| Operating Humidity | Less than 80%RH |
