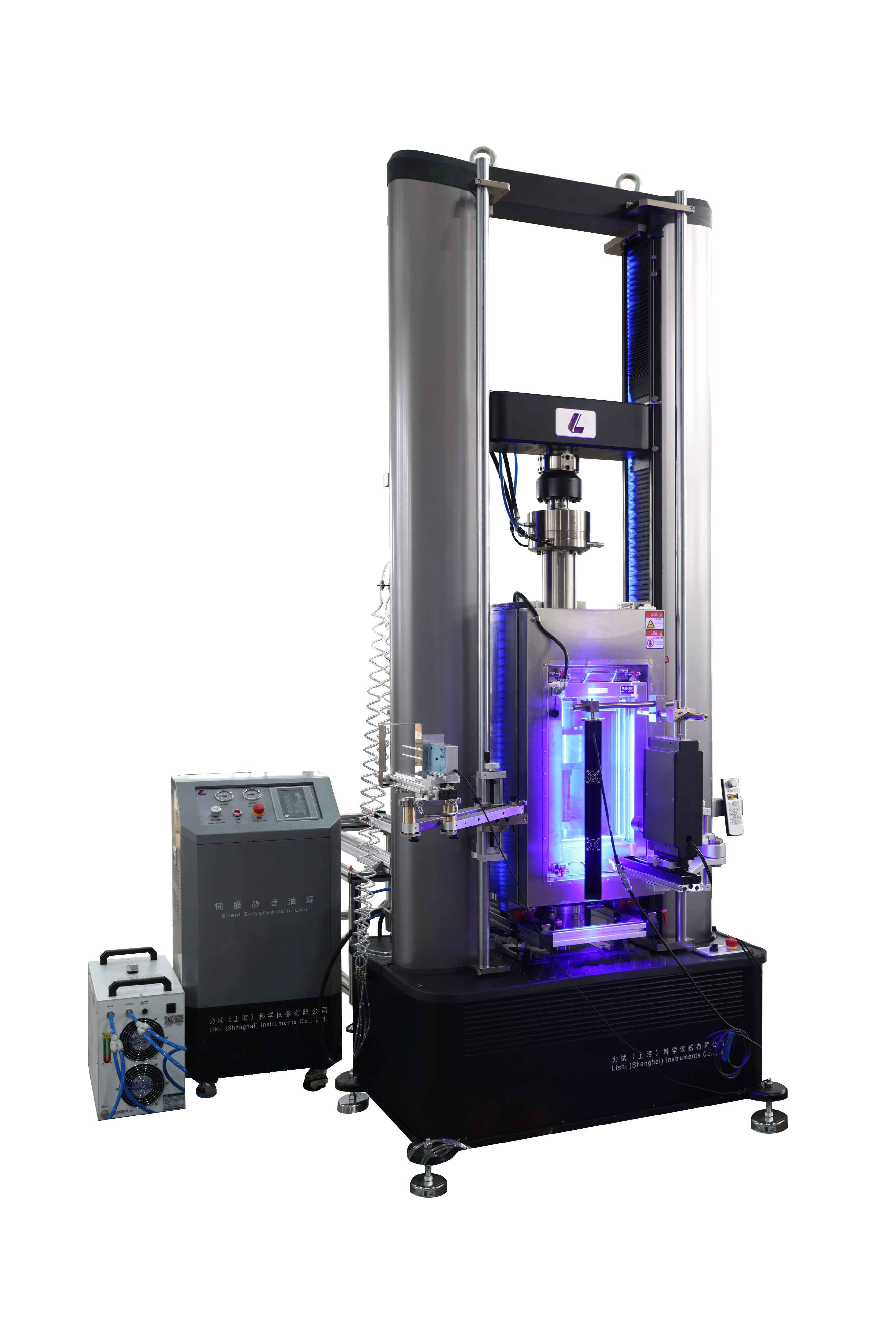

LE5000 Series Floor Standing Load Frame Universal Testing Systems
The floor standing load frame ranges from 100kN to 600kN in force capacity with extended height option.
The floor standing load frame ranges from 100kN to 600kN in force capacity with extended height option.
DESCRIPTION
Design Features
Bearing & Ball Screw
Stiff preloaded bearing and precision ball screw column with guidance rod ensures stable crosshead movement and accurate strain results
LED Status Indicator
System status indication LED light strip reminds operators of safe operation
High Performance Controller
Latest close-loop high performance controller up to 2500Hz data acquisition rate
Safety Protection
Test safety is ensured with physical limit switches and software overload protection as well as available test space enclosures
Servo Motor System
Proprietary servo motor drive system achieves high speed with little vibration
TEDS Loadcell
Loadcell with TEDS self-identification capability
Analysis & Report
Comprehensive post analysis tool and report functions
Technical Specifications
| Model | LE5105 | LE5504 | LE5254 | LE5305 | LE5255 | LE5605 | LE5505 | LE5106 | LE5206 | |
| 1 | Load frame type | Floor Standing | Floor Standing | Floor Standing | Floor Standing | Floor Standing | Floor Standing | Floor Standing | Floor Standing | Floor Standing |
| 2 | Capacity (kN) | 100kN | 50kN | 25kN | 300kN | 250kN | 600kN | 500kN | 1000kN | 2000kN |
| 3 | Calibration standard | Class 0.5 | Class 0.5 | Class 0.5 | Class 0.5 | Class 0.5 | Class 0.5 | Class 0.5 | Class 0.5 | Class 0.5 |
| 4 | Force range | 0.4 ~ 100%FS | 0.4 ~ 100%FS | 0.4 ~ 100%FS | 0.4 ~ 100%FS | 0.4 ~ 100%FS | 0.4 ~ 100%FS | 0.4 ~ 100%FS | 0.4 ~ 100%FS | 0.4 ~ 100%FS |
| 5 | Force accuracy | ±0.5% of reading | ±0.5% of reading | ±0.5% of reading | ±0.5% of reading | ±0.5% of reading | ±0.5% of reading | ±0.5% of reading | ±0.5% of reading | ±0.5% of reading |
| 6 | Max. crosshead speed | Up to 750mm/min | Up to 750mm/min | Up to 750mm/min | Up to 750mm/min | Up to 750mm/min | Up to 254mm/min | Up to 254mm/min | Up to 254mm/min | Up to 254mm/min |
| 7 | Min. Crosshead speed | 0.001mm/min | 0.001mm/min | 0.001mm/min | 0.001mm/min | 0.001mm/min | 0.001mm/min | 0.001mm/min | 0.001mm/min | 0.001mm/min |
| 8 | Displacement resolution | 0.0000125mm | 0.0000125mm | 0.0000125mm | 0.0000153mm | 0.0000153mm | 0.0000041mm | 0.0000041mm | 0.0000062mm | 0.0000062mm |
| 9 | Analog signal resolution | 1/7000000 FS | 1/7000000 FS | 1/7000000 FS | 1/7000000 FS | 1/7000000 FS | 1/7000000 FS | 1/7000000 FS | 1/7000000 FS | 1/7000000 FS |
| 10 | Data acquisition frequency | 2500Hz | 2500Hz | 2500Hz | 2500Hz | 2500Hz | 2500Hz | 2500Hz | 2500Hz | 2500Hz |
| 11 | Force control accuracy | ≤±0.5% | ≤±0.5% | ≤±0.5% | ≤±0.5% | ≤±0.5% | ≤±0.5% | ≤±0.5% | ≤±0.5% | ≤±0.5% |
| 12 | Crosshead control accuracy | ≤±0.2% | ≤±0.2% | ≤±0.2% | ≤±0.2% | ≤±0.2% | ≤±0.2% | ≤±0.2% | ≤±0.2% | ≤±0.2% |
| 13 | Strain control accuracy | ≤±0.5% | ≤±0.5% | ≤±0.5% | ≤±0.5% | ≤±0.5% | ≤±0.5% | ≤±0.5% | ≤±0.5% | ≤±0.5% |
| 14 | Effective width between columns | 600mm | 600mm | 600mm | 600mm | 600mm | 750mm | 750mm | 750mm | 750mm |
| 15 | Effective vertical test space | 1000mm | 1000mm | 1000mm | 1100mm | 1100mm | 1400mm | 1400mm | 1600mm | 1900mm |
| 16 | Overall dimensions | 1325(W)x905(D)x2290(H) mm | 1325(W)x905(D)x2290(H) mm | 1325(W)x905(D)x2290(H) mm | 1325(W)x905(D)x2650(H) mm | 1325(W)x905(D)x2650(H) mm | 1810(W)x1300(D)x3150(H) mm | 1810(W)x1300(D)x3150(H) mm | 1940(W)x1640(D)x3500(H) mm | 2050(W)x1640(D)x3900(H) mm |
| 17 | Gross weight | 1400kg | 1400kg | 1400kg | 1700kg | 1700kg | 3500kg | 3500kg | 6000kg | 7500kg |
