High-Temperature Test Furnace
Overview

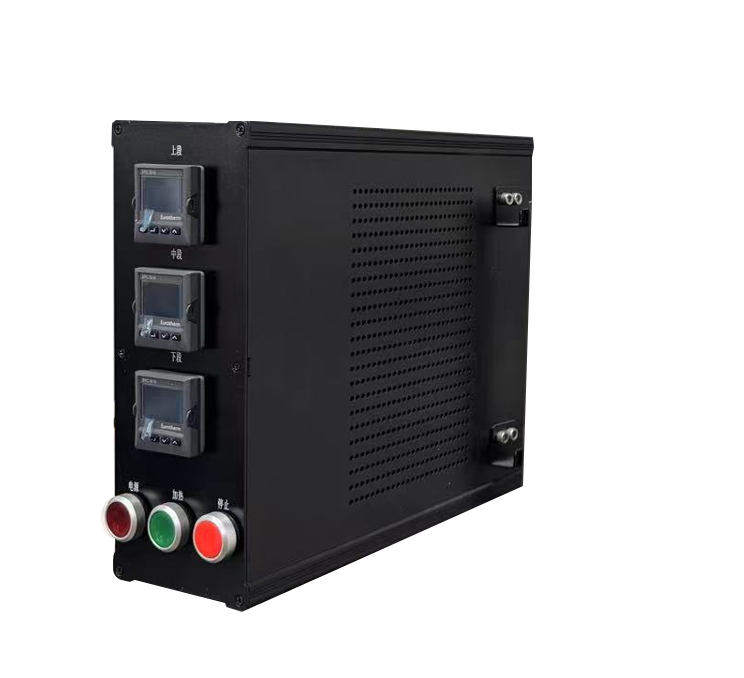

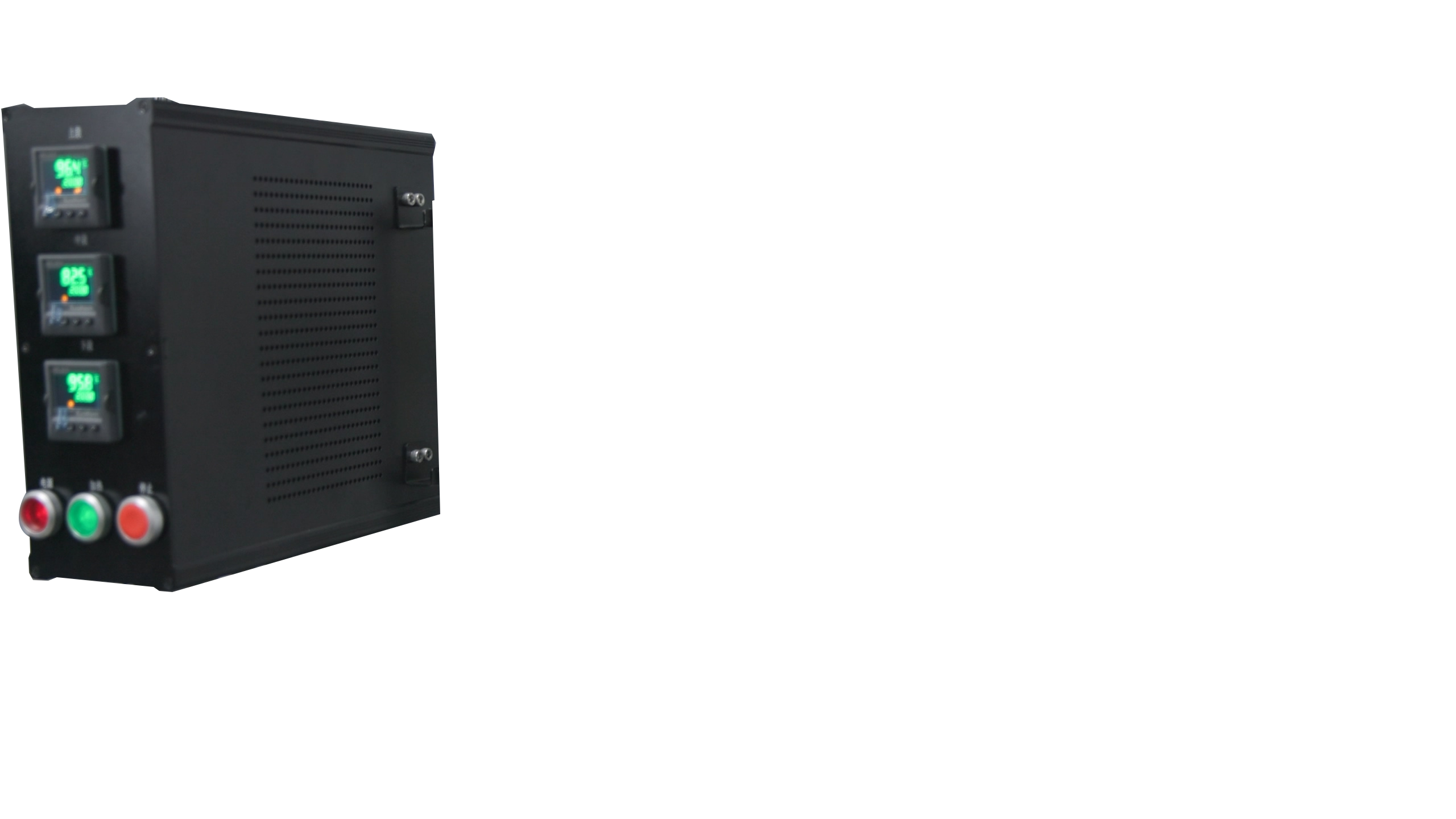

High‑temperature furnace controller
内容
| 参数 | 数值 |
|---|---|
| 规格 | XXX |
| 材质 | XXX |

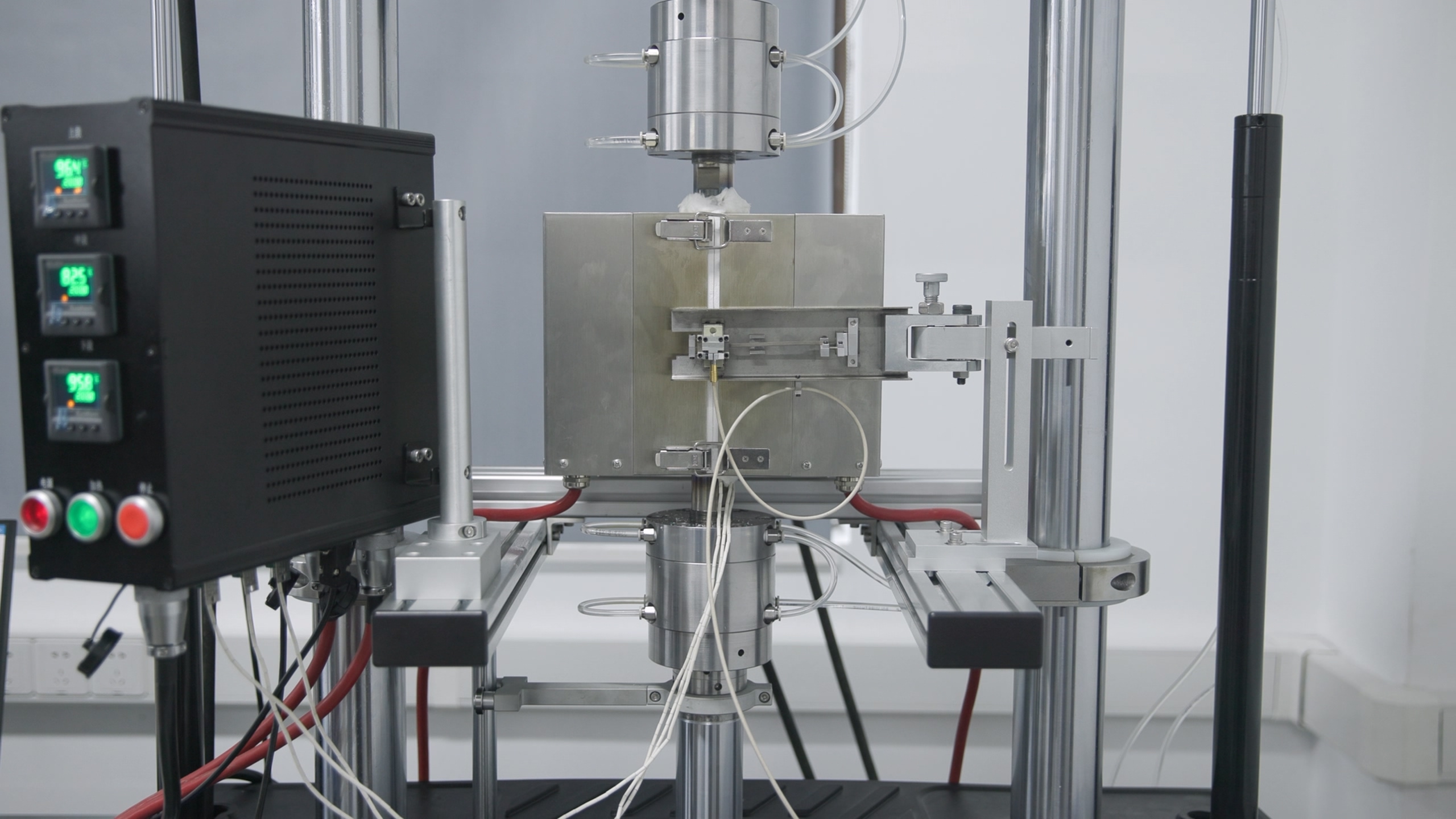

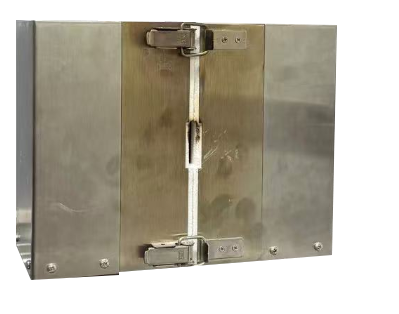

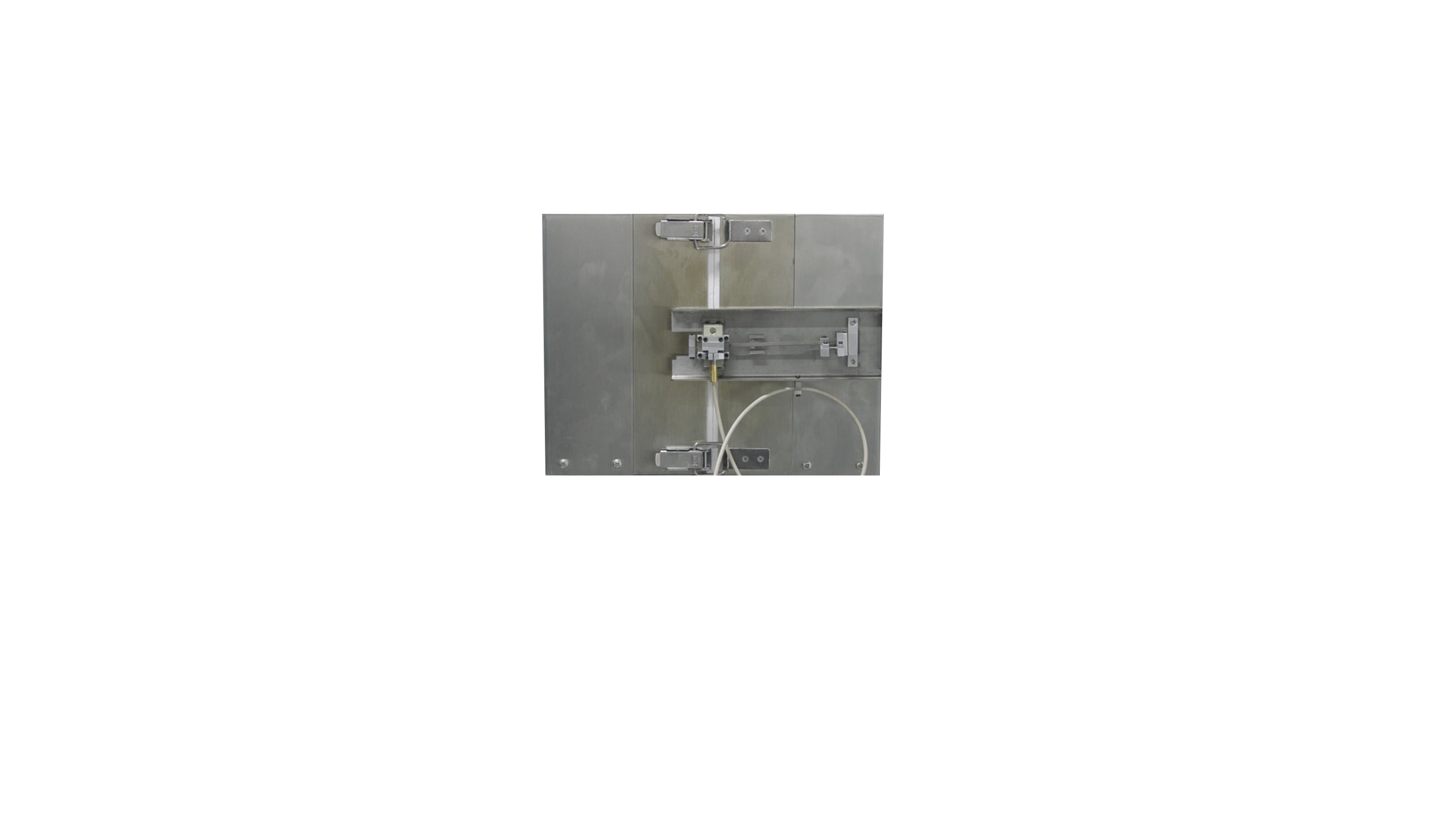

High-temperature Test Furnace
内容
| 参数 | 数值 |
|---|---|
| 规格 | XXX |
| 材质 | XXX |

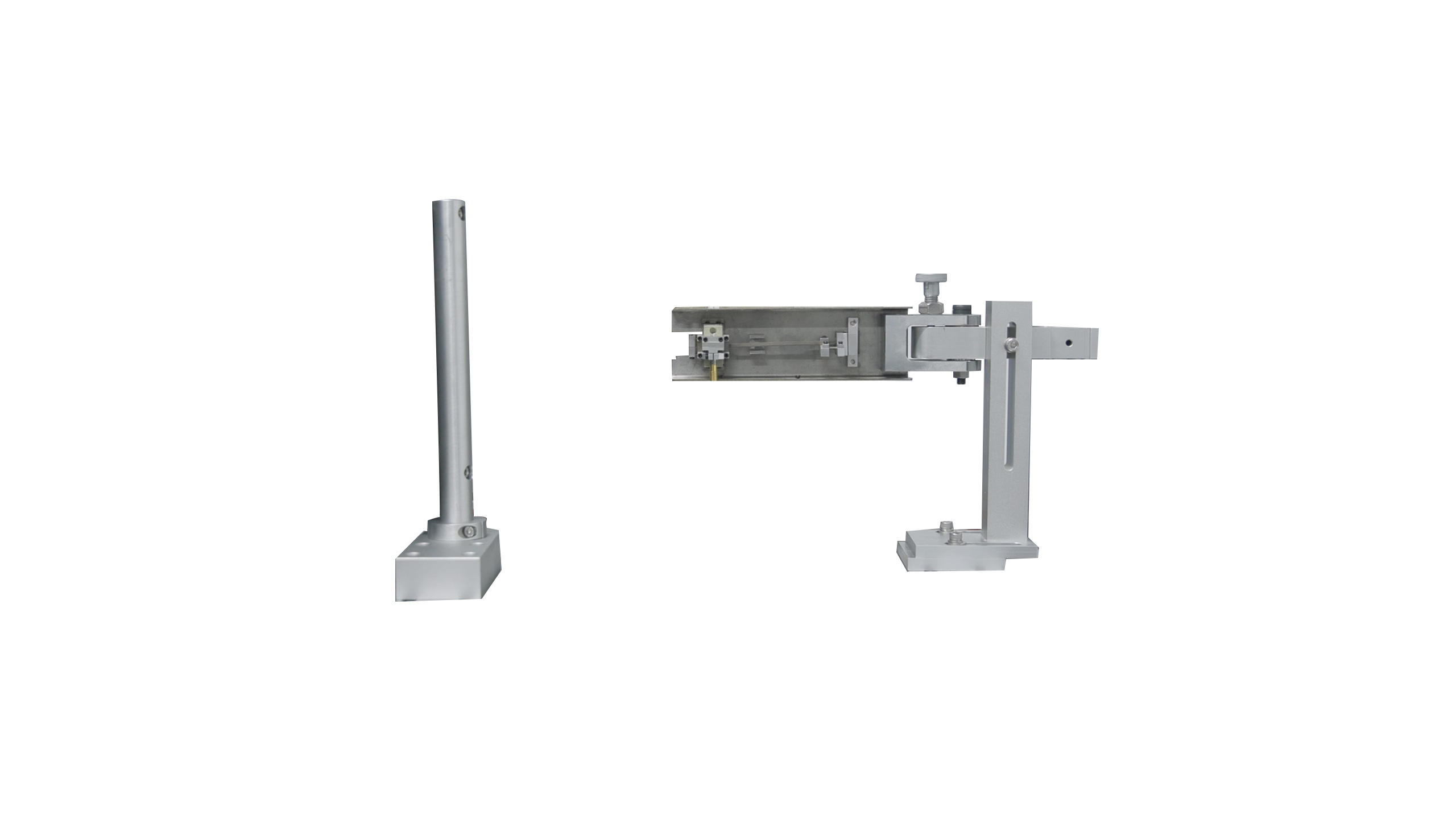

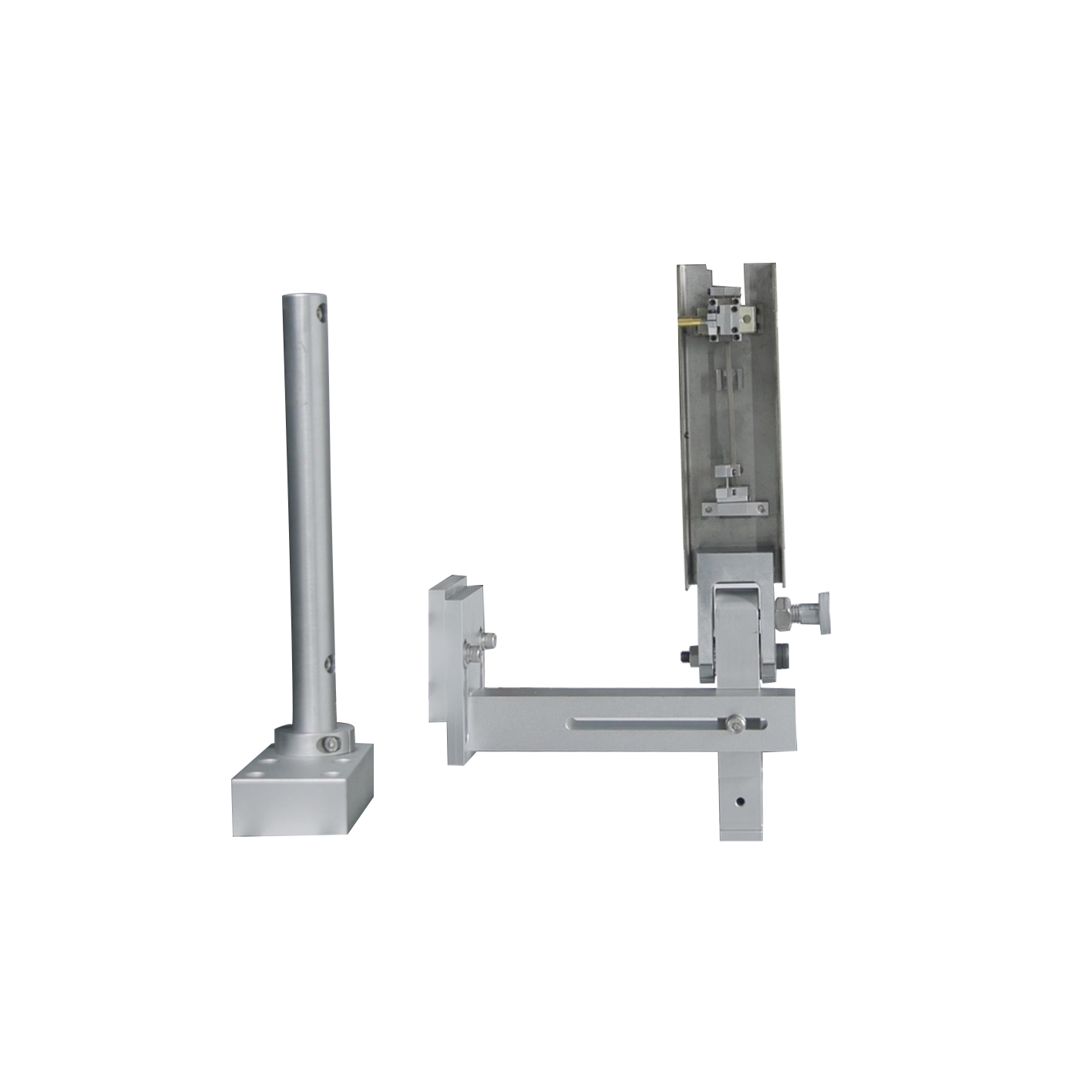

Furnace Installation Rack
内容
| 参数 | 数值 |
|---|---|
| 规格 | XXX |
| 材质 | XXX |
Features
Technical Parameters
| Parameter | LE2101 | LE2201 | LE2501 | LE2102 | LE2502 | LE2103 | LE2253 | LE2503 |
| Load frame type | Desktop（Single） | |||||||
| Capacity | 10N | 20N | 50N | 100N | 500N | 1kN | 2.5kN | 5kN |
| Calibration standard | Class 0.5 | |||||||
| Force range | 0.02%~20%FS/s | |||||||
| Force accuracy | within ±0.5% of reading | |||||||
| Max. crosshead speed | 1500 mm/min | |||||||
| Min. crosshead speed | 0.0001 mm/min | |||||||
| Displacement resolution | 0.0000183mm | |||||||
| Analog signal resolution | 1/±7000000FS | |||||||
| Data acquisition frequency | ≤2500Hz | |||||||
| Force control accuracy | ≤±0.5% | |||||||
| Crosshead control accuracy | ≤±0.2% | |||||||
| Strain control accuracy | ≤±0.5% | |||||||
| Effective transverse test space | 100 mm | |||||||
| Effective vertical test space | 800 mm | |||||||
| Overall dimensions | 650 × 600 × 1550 mm | |||||||
| Gross weight | 150 kg | |||||||
Why Choose Us?
-
• We provide 7×24 technical consultation, operator training, and timely software updates.
-
• We offer remote monitoring of equipment status, enabling rapid diagnosis and resolution when abnormalities occur.
-
• Keeping up with the latest development of widely adopted international standards from ASTM, ISO, etc. to ensureyour test results relevant and credible
-
• Maximizing your lab investment returns with tailored solutions to your unique needs from cost effective hardware tosoftware customization
-
• We treat everyone, be it clients, colleagues or partners, with honesty and sincerity.
-
• Staying at the forefront of testing technologies that continuously improve test accuracy, repeatability, and eficiency
